Lap Timer

Lap timer

Project Image
Project Owner:

John N. G. Samarasinghe

Project End Date:


Project tags:

buggy, lap timer

Dive in to details

I built this circuit to test the time taken for a line following buggy to complete one lap in a track that I created. Myself and my friend used this circuit to measure the best time taken. The circuit consists of
- 2 push buttons to select which user is racing next

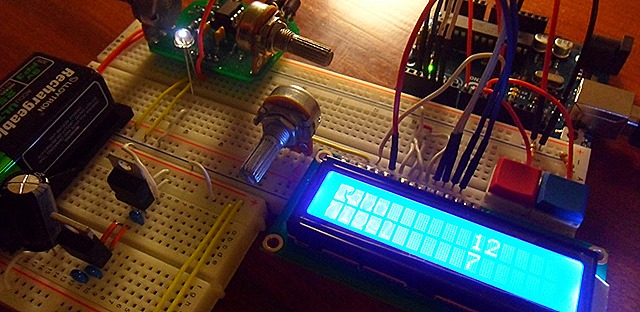

- LCD display to show the best time and the current time while the timer is running
- A power supply consisting of a 9V battery connected to two voltage dividers that step down the voltage to 5V and 3.3V.
- A sensor circuit fabricated by my friend which outputs a logic high when the sensor detects any object in front of it at a limited range.

Lap Timer

Lap Timer

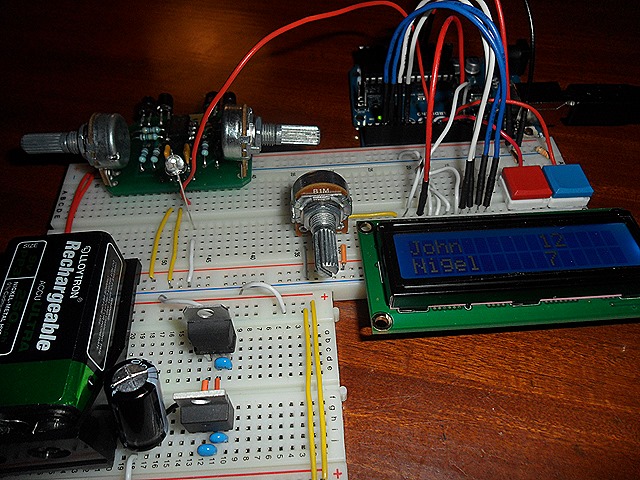

To get started, I built the circuit with an Arduino Uno R3. After successfully making basic connections to the arduino and debugging my code I decided the make the circuit with a MSP430 to make it smaller and more portable.

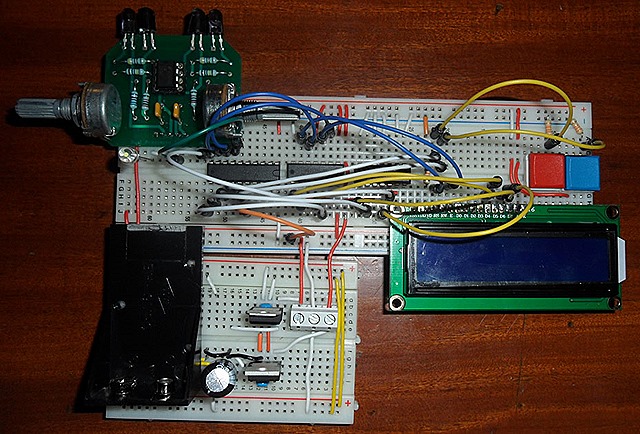

The MSP430 operates at 3.3V but the LCD display needs more than that to record a logic high. To overcome this problem AND gates were used to increase the output to the LCD display connections increase to 4.5V.

Lap Timer

If you want to create a similar circuit with an arduino all you have to do is the following.
- Read and be familiarised with the “Liquid Crystal” library that comes with the Arduino software.
- Make connections to the LCD display as shown in the library.
- Fix two switches and wire it to the arduino.
- Get a basic IR emitter and a receiver (It is easier to get a TCRT5000). Then wire the receiver same as the switches. Instead of connecting it straight to the arduino, connect it to a comparator and use a voltage regulator to control the output signal.
- If necessary use a Voltage regulator to drop the voltage from your source to 5V.

You can write your own program. but here is a copy of my program.
